FLOOR COOKING OIL PRESS ASSEMBLY INSTRUCTIONS FOR CAGE

Quick assembly instructions for the floor cooking oil press cage.

Step A

Locate the SIM fittings. SIM = Sesame or Simsim seeds.

Part

Step B

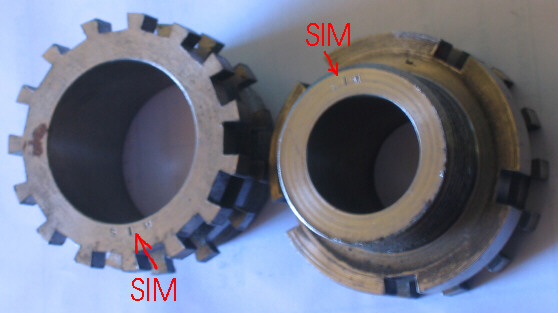

Locate the top and bottom SIM fittings.

Part

Step C

Missing.

Part

Step D

Note the deep hooks going to the top SIM fitting.

Part

Step E

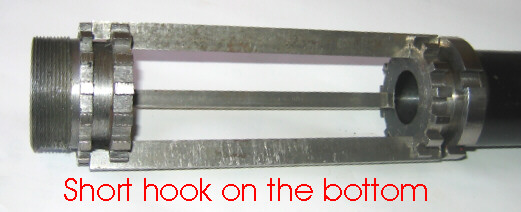

Place a few of the cage bars around the circumference of the SIM fittings, keeping the spacing wide.

Part

Step F

Continue placing the bars around the circumference of the SIM fittings.

Part

Step G

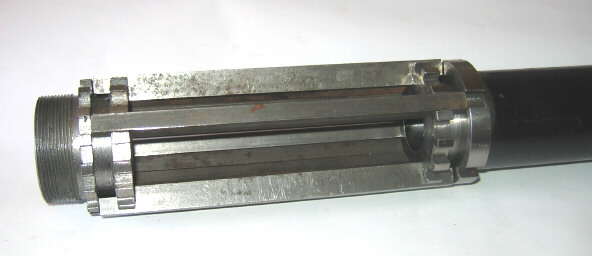

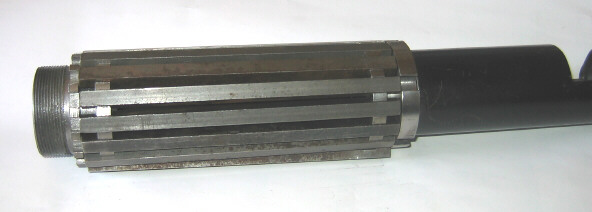

All of the bars are now in place around the circumference of the top and bottom SIM fittings.

Part

Step H

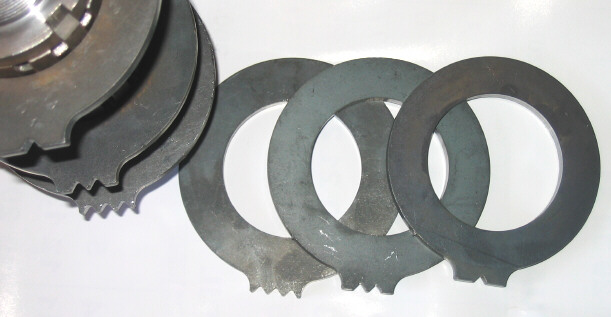

Locate the three rings for the sesame seeds.

Part

Step I

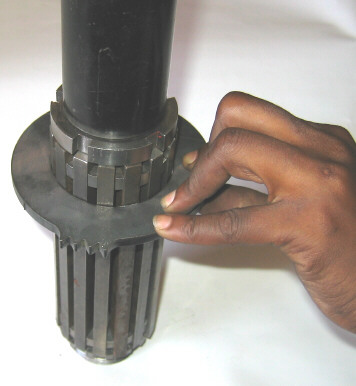

Put the first ring on over the cage bar assembly.

Part

Step J

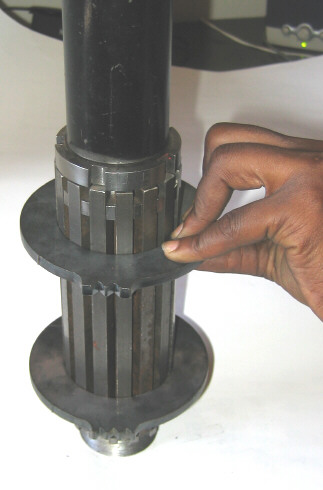

Put the second ring on over the cage bar assembly.

Part

Step K

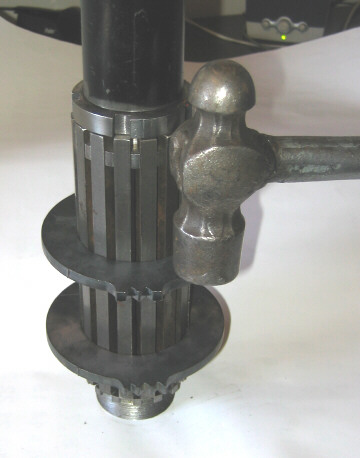

Set the second ring on the cage bar assembly, by tapping gently on it with a hammer.

Part

Step L

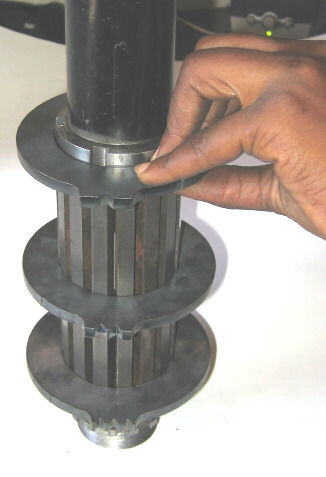

Put the third ring on over the cage bar assembly.

Part

Step M

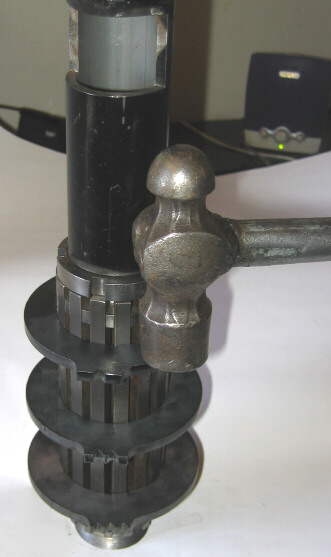

Set the third ring on the cage bar assembly, by tapping gently on it with a hammer.

Part

Step N

Screw on the piston cylinder.

Part

Step O

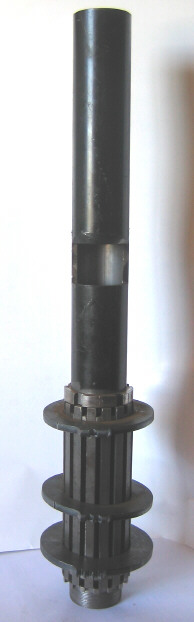

Finished cage assembly.

Part
